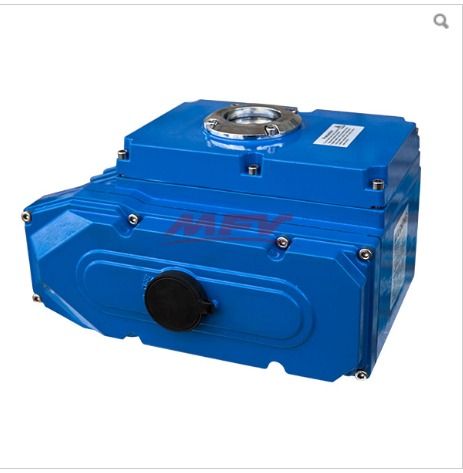

Electric Actuator

Housing: Aluminum Housing, Waterproof: IP67, NEMA4 and 6Motor Power:110/220V AC,1 Phase; 380/440V AC,3 Phase; 50/60HZ,± 10%Control Power: 110/220V AC,1 Phase 50/60HZ,+ 10%Limit switch: 2 * On /Off, SPDT, 250V AC, 10AAuxiliary limit switch: 2 * On /Off, SPDT, 250V AC, 10AStroke:90°-270 ± 10°( described earlier above 90 °)Manually: mechanical handle (optional handwheel)Self-locking device: worm, worm mechanism provides self-locking
