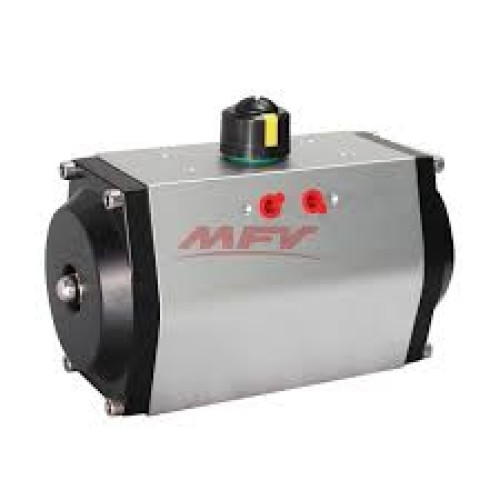

Torque range: 10-10000NM Travel range: 0-90 degrees Protection: lP67 Control: double-acting, single acting normally closed, normally open Single-actingConfiguration mode: rack and pinion pistonCan be equipped with valves: butterfly valves, ball valves, damperSurface treatment
pressure range: 2 to 8 bars for double action and 2 to 8 bars for single action;Operating temperature: Standard (with nitrile rubber O-ring);-20 °C to + 80 °C rubber O-ring);-40 deg.] C ~ + 80 deg.] C high temperature (fluorine rubber O-ring),-20 deg.] C ~ + 150 deg.] C;Stroke adjustment:

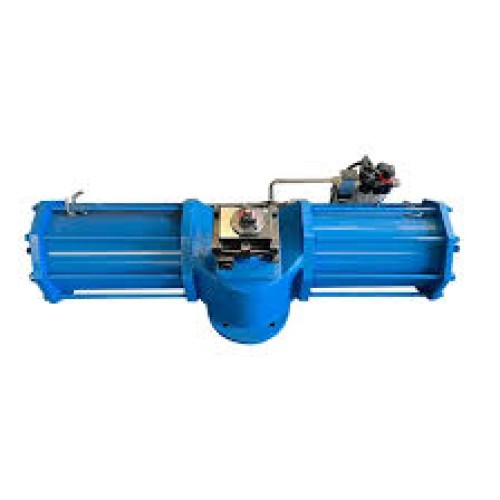

Air pressure: 0.3 ~ 0.7Mpa (max 1.0Mpa)Working environment temperature:Basic: -20 °C ~ 90 °C High temperature: -20°C ~ 180 °CLow temperature: -40 °C ~ 90 °CAngle of rotation: 90 °~ ± 5 °Air source interface: AW13-G1/4, AW17-G3/8,AW20~AW40-G1/2

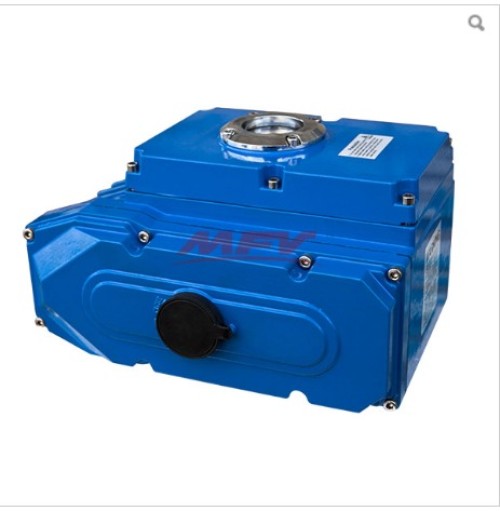

Housing: Waterproof IP67, NEMA4and6Motor Power: 110/220VAC1PH.380/440V AC 3PH.50/60HZ.+1Limit Switch: 2X ON/OFF, SPDT, 250V AC 10ATravel: 90° ± 100Ambient temperature: -20 °C ~ 70 °CMaterial: steel, aluminum alloy, aluminum bronze, polycarbonate

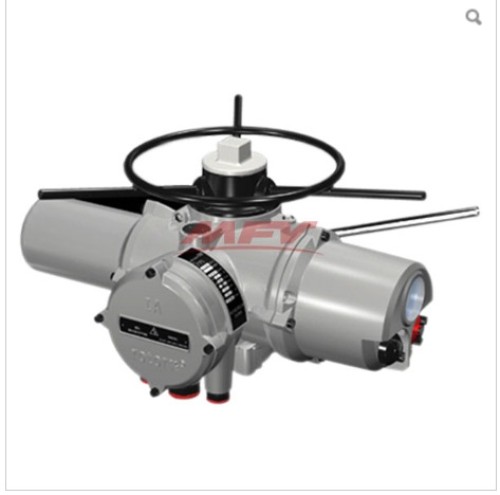

Housing: Aluminum Housing, Waterproof: IP67, NEMA4 and 6Motor Power:110/220V AC,1 Phase; 380/440V AC,3 Phase; 50/60HZ,± 10%Control Power: 110/220V AC,1 Phase 50/60HZ,+ 10%Limit switch: 2 * On /Off, SPDT, 250V AC, 10AAuxiliary limit switch: 2 * On /Off, SPDT, 250V AC, 10AStroke:90°-270
*Large-scale digital integrated chip, powerful, high precision level.Mechatronics design, small size, light weight.* Use a professional pressure sensor to measure the torque value of the output shaft,thus improving the accuracy of the torque measurement, the error rate ≤ 5% and canbe dynamical
CategoriesIf fluid operations represent your core of industrial performance, then actuator valves are the real backbone of system reliability. CNHugong’s cutting-edge range of electric and pneumatic actuator valves is just what you need to take your industrial performance to a new level. Being a global Actuator Valve Exporter, we offer a versatile range of actuator valves capable of handling the workload of high-speed processes as well as heavy-duty manufacturing. We pride ourselves on delivering the ultimate blend of power and scalability in our actuator valve solutions.
What makes our actuator valves perfectly suited for industrial applications is their accuracy for regulation and on/off flow control. With such features, users can fine-tune the flow to suit the process requirements. The result is full control of flow parameters which leads to fewer errors.
We know that fluid pipeline systems are used in a wide range of industrial facilities and being a specialized actuator valve exporter, we offer actuator valves in pneumatic and electric versions.
• Electric actuators: Experience quiet and energy-efficient operation with uniform power output.
• Pneumatic actuators: Deliver a powerful performance in high-pressure environments.
Our multiple models are available in various torque ratings and mounting style to fit into any kind of pipe layout.
From one-offs to full-facility outfitting, we provide Wholesale Actuator Valve orders to diverse industries with efficient lead times and uniform product quality. We have an efficient supply chain system so no matter how large your project we can supply actuator valves of effortlessly no matter how large your requirement.
If you want a powerful valve that can truly handle intensive operations and the heavy workload of a high-pressure system, then our actuator valves are just what you need. We offer actuator valve versions with high torque ranges and powerful shutoff capabilities. These valves are built to handle large-diameter pipes with high-pressure flow without experiencing any performance drop or breakdown. Use these valves with hardened gearing and seals, and you will end up with valves that are really.
We want our customers to feel completely at ease regarding the operation of valves, and that is why we give special care to manufacture actuator valves that are guaranteed to deliver reliable performance. Each of our actuator valves is ISO certified and has an IP62 rating for durability and water resistance. So, if you are deploying these valves for a large project, then our valves check all the boxes regarding legality and quality.
