Cast Steel Fixed Ball Valve Model: Q347F/W/H/YNominal Diameter: NPS 1/2"～64"Nominal Pressure: Class 150~2500LBApplicable Temperature: -196°C to 450°CApplicable Media: Water, gas, oil, natural gas, and corrosive media (acid and alkali)Design & Manufacture Standard: API 6D Technical Specifications: Face-to-Face Dimensions: ANSI B16.10 Flange Connection: ANSI B16.5, MSS-SP44 Inspection & Testing Standard: API STD.598 Overview: The valve is available in two structural types: Two-Piece Design: The body is connected with threaded bolts and sealed with PTFE gaskets. Three-Piece Design: The middle section is bolted together for secure assembly. The valves suitability for various working temperatures and media depends on the selected seat and gasket/packing materials. It is mainly used in industries such as chemical, metallurgy, petroleum, and pharmaceuticals, where high-pressure media transmission is required. Operating Temperature Range: -196°C to 450°C Operation Methods: Manual, pneumatic, electric, hydraulic, and worm gear actuation Nominal Diameter Range: NPS 1/2" to 12" Nominal Pressure Range: Class 150LB to 1500LB Applicable Media: Water, gas, oil, natural gas, and corrosive fluids (acid and alkali)
View Product
Model: Q641FNominal Diameter: Operating Temperature: -20°C to 232°C (up to 350°C for specific applications)Applicable Media: Water, oil, gas, and certain corrosive liquidsBody Material: WCB, 304, 316 stainless steel Technical Standards: Design Standard: GOST 12237 Flange Connection Dimensions: GOST 9113, JB/T79
View Product
Welded Steel Ball Valve Model: Q61F Nominal Diameter: DN15~250mm Nominal Pressure: PN1.66.4MPa, Class 150600LB Main Materials: WCB, A105, F11, F22, F304, F316, CF8, CF8M, WCC, or customized as per customer requirements Operating Temperature: -40℃~+220℃ Connection Type: Welded, Butt Weld Drive Options: Electric Manual Worm Gear Gear Drive Standards: Design & Manufacturing: GOST 12237-2007 Structural Length: GOST 12221-2005 Socket Welding: GOST 12224, ANSI B16.25 Applications: Urban Gas Systems – Gas transmission pipelines, main pipelines, and branch supply pipelines. District Heating – Large-scale heating equipment output pipelines, main pipelines, and branch pipelines. Heat Exchangers – Pipeline and circuit control. Steel Plants – Fluid pipelines, exhaust pipelines, gas and heat supply pipelines, and fuel supply pipelines. Industrial Equipment – Various heat treatment pipelines, industrial gas pipelines, and heat supply pipelines.|
View Product
Electric V-Port Ball Valve Model: VQ947HNominal Diameter:DN25300mmNominal Pressure: PN1.64.0MPaBody Material: WCB, 304, 316 stainless steel Connection Type: Wafer-type, FlangedFlange Standards: GOST, ANSI, DIN, JIS Electric Actuator Types: On/off type Modulating type Explosion-proof type Design & Manufacturing Standards: Design Standards: GOST/12237/1989, ASME B16.34, API608 Face-to-Face Dimensions: GOST/12221, ASME B16.10 Connection Dimensions: GOST/9113.1, ASME B16.5
View Product
Electric V-Ball Valve Model: VQ671F / VQ641FNominal Diameter: Wafer type DN25250mm / Flanged type DN25500mmNominal Pressure: PN1.6~2.5MPaConnection Type: Wafer, FlangedMedium Temperature: W1: -40°C to 180°C W2: -40°C to 300°C W3: -30°C to 425°C W4: -40°C to 425°CBody Material: Carbon steel (C), Stainless steel (P4, P6) Technical Standards: Design Basis: GOST Standard Design Standard: GOST 12237 Flange Dimensions: GOST 9113, JB/T79 Features: Compact Structure & Flexible Installation – Small size, space-saving, and can be installed vertically or horizontally. Excellent Flow Control – V-port ball valve provides an equal percentage flow characteristic and an adjustable ratio of up to 300:1, ensuring precise control over a wide range. Large Flow Capacity – The streamlined design and full right-angle rotation allow for high flow volume, minimal resistance, and optimized valve sizing for cost efficiency. Stable & Responsive Operation – Dual-bearing structure ensures high mechanical stability and low starting torque, enhancing sensitivity and quick response. High Reliability & Safety – One-piece valve body is durable and pressure-resistant, preventing leakage and ensuring long-term reliability. Superior Metal Seat Sealing – Self-compensating movable metal seat provides tight sealing, extended service life, and minimal leakage (≤10⁻⁶ × rated flow coefficient)Strong Shearing Capability – The V-ball valve adopts a metal hard-seal structure. During rotation, the V-shaped notch and metal seat create a strong shearing force, effectively cutting through fibers and impurities. It also has a self-cleaning function, preventing valve jamming.
View Product
2"-36"●A105/ENP/316 /304● 150#-1500# Py10-Py100 Dy50-Dy1800 API6D/API608 Py10-Py100 GOST ball valve 1/2"-8"● WCB/CF8/CF8M/A105 Dy15-Dy600 GOST9544-2015 Py10-Py100 API ball valve 1/2"-8"●WCB/CF8/CF8MA105●150#-600LB API6D/API608 ASMEB16. JIS ball valve 15A-400A● SCPH2/SCS13/SUS304/SCS14 ●SUS316● 10K-40K JISB JISB2002 JISB2003 DIN ball valve DN15-DN200●1.4401/1.4408 DIN3357 DIN2543-2545 DIN3230
View Product
2"-36"●A105/ENP/316 /304● 150#-1500# Py10-Py100 Dy50-Dy1800 API6D/API608 Py10-Py100 GOST ball valve 1/2"-8"● WCB/CF8/CF8M/A105 Dy15-Dy600 GOST9544-2015 Py10-Py100 API ball valve 1/2"-8"●WCB/CF8/CF8MA105●150#-600LB API6D/API608 ASMEB16. JIS ball valve 15A-400A● SCPH2/SCS13/SUS304/SCS14 ●SUS316● 10K-40K JISB JISB2002 JISB2003 DIN ball valve DN15-DN200●1.4401/1.4408 DIN3357 DIN2543-2545 DIN3230
View Product
2"-36"●A105/ENP/316 /304● 150#-1500# Py10-Py100 Dy50-Dy1800 API6D/API608 Py10-Py100 GOST ball valve 1/2"-8"● WCB/CF8/CF8M/A105 Dy15-Dy600 GOST9544-2015 Py10-Py100 API ball valve 1/2"-8"●WCB/CF8/CF8MA105●150#-600LB API6D/API608 ASMEB16. JIS ball valve 15A-400A● SCPH2/SCS13/SUS304/SCS14 ●SUS316● 10K-40K JISB JISB2002 JISB2003 DIN ball valve DN15-DN200●1.4401/1.4408 DIN3357 DIN2543-2545 DIN3230
View Product
2"-36"●A105/ENP/316 /304● 150#-1500# Py10-Py100 Dy50-Dy1800 API6D/API608 Py10-Py100 GOST ball valve 1/2"-8"● WCB/CF8/CF8M/A105 Dy15-Dy600 GOST9544-2015 Py10-Py100 API ball valve 1/2"-8"●WCB/CF8/CF8MA105●150#-600LB API6D/API608 ASMEB16. JIS ball valve 15A-400A● SCPH2/SCS13/SUS304/SCS14 ●SUS316● 10K-40K JISB JISB2002 JISB2003 DIN ball valve DN15-DN200●1.4401/1.4408 DIN3357 DIN2543-2545 DIN3230
View Product
2"-36"●A105/ENP/316 /304● 150#-1500# Py10-Py100 Dy50-Dy1800 API6D/API608 Py10-Py100 GOST ball valve 1/2"-8"● WCB/CF8/CF8M/A105 Dy15-Dy600 GOST9544-2015 Py10-Py100 API ball valve 1/2"-8"●WCB/CF8/CF8MA105●150#-600LB API6D/API608 ASMEB16. JIS ball valve 15A-400A● SCPH2/SCS13/SUS304/SCS14 ●SUS316● 10K-40K JISB JISB2002 JISB2003 DIN ball valve DN15-DN200●1.4401/1.4408 DIN3357 DIN2543-2545 DIN3230
View Product
Model: SD341XNominal Diameter: DN502000mmNominal Pressure: PN0.61.6MPaOperating Temperature: Soft Seal: X: -40℃ to 90℃, XF: -20℃ to 200℃ Hard Seal: Carbon Steel: -29℃ to 425℃, Stainless Steel: -40℃ to 650℃Applicable Media: Water, air, natural gas, oil, and mildly corrosive fluidsActuation Methods: Worm gear, electric, pneumatic, hydraulic Technical Standards: Body Material: WCB, QT450-10, Stainless Steel Manufacturing Standards: JB/T8527-97, GOST 122387-89 Flange Standards: GOST 9113-2000, GOST 17241.6-1998 Product Overview: The flanged expansion butterfly valve provides automatic compensation for pipeline thermal expansion and contraction, facilitating installation and disassembly. It is ideal for industrial pipelines in petroleum, chemical, power, paper, water supply, and municipal construction sectors operating at temperatures below 120°C and nominal pressures up to 1.6MPa. It is designed for flow regulation and fluid shut-off. Working Principle: The flanged expansion butterfly valve is available in three types: A. Standard Type – Designed per expansion joint specifications. Optional limit bolts available upon request. B. Fixed-Limit Type – Allows expansion but includes a limit mechanism to prevent excessive movement, making it more versatile. C. Extended Type – Features a longer expansion joint to match user requirements. Ideal for pipeline retrofits where replacing valves without cutting existing pipeline connections is necessary. Optional limit mechanisms available upon request. Key Features: Adjustable & Replaceable Sealing – Ensures reliable performance. Compact & Lightweight Design – Easy operation with quick opening/closing. Thermal Expansion Compensation – Prevents pipeline damage from temperature fluctuations while allowing easier valve maintenance and replacement. Installation Precautions: The valve must be stored flat before installation; avoid impacts. Do not remove the support bracket during operation. The valve is shipped at its minimum length. Extend it to the installation length before fitting. If the pipeline length exceeds the valve installation length, adjust the pipeline spacing instead of forcibly stretching the valve. When used for temperature compensation, install support brackets at both ends to prevent overextension.
View Product

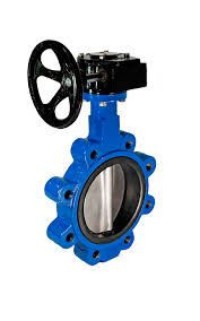

Flanged Expansion Butterfly Valve Model: SD341XNominal Diameter: DN50–2000mmNominal Pressure: PN0.6–1.6MPaApplicable Temperature: Soft Seal: X: -40℃ to 90℃; XF: -20℃ to 200℃ Hard Seal: Carbon Steel: -29℃ to 425℃; Stainless Steel: -40℃ to 650℃Applicable Medium: Water, air, natural gas, oil, and mildly corrosive fluids Actuation Methods: Worm gear, electric, pneumatic, hydraulic Valve Body Material: WCB, QT450-10, stainless steel Manufacturing Standards: JB/T8527-97, GOST 122387-89 Flange Standards: GOST 9113-2000, GOST 17241.6-1998 Product Overview The flanged expansion butterfly valve is designed to automatically compensate for thermal expansion and contraction in pipelines, facilitating easy installation and removal. It is ideal for industrial pipelines in petroleum, chemical, power, paper-making, water supply & drainage, and municipal construction industries, where temperatures do not exceed 120℃ and nominal pressure is up to 1.6MPa. The valve effectively regulates flow and isolates fluids. Working Principle The flanged expansion butterfly valve is available in three types: Standard Type: Installed according to the expansion joints design specifications. If limit bolts are required, they must be specified during design. Fixed-Limit Type: Provides both expansion and limiting functions, allowing the expansion section to be fixed when necessary. It offers greater functionality and a wider range of applications. Extended Type: Features an extended expansion section to match the required length without considering the expansion amount. This type is particularly useful for pipeline renovations where existing valves need replacement without cutting and modifying pipe connections. If limit measures are needed, they should be specified during design. Product Features Adjustable and replaceable sealing components ensure reliable sealing performance. Unique structure, flexible design, lightweight, easy to operate, and quick to open/close. Compensates for pipeline expansion and contraction due to temperature changes while facilitating maintenance and replacement. Installation Precautions Before installation, the valve should be laid flat to prevent damage. Do not randomly knock or collide with it, and do not remove the support bracket during operation. The valve is shipped at its minimum structural length. During installation, extend it to the designated installation length. If the pipeline gap exceeds the valve’s expansion range, adjust the pipe spacing instead of forcibly stretching the valve, as this may cause damage. The valve can be installed in any direction. When used for temperature compensation, additional supports must be installed at both ends along the pipeline axis after pipeline installation to prevent the expansion section from being pulled out.
View Product
Electric Ventilation Butterfly Valve Nominal Pressure: PN0.05–0.6MPa Nominal Diameter: DN300–4000mm Actuation Method: Pneumatic, Electric Applicable Medium: Hot and cold air, flue gas Design Standards: GOST 12238-1989, JB/T 8692-1998 Flange Connection Dimensions: GOST 9115.1-2000 Face-to-Face Length: GOST 12221-198
View Product
Wafer-Type Soft-Seal Butterfly Valve Model: D371X Nominal Diameter: DN40–350mm Nominal Pressure: PN0.6–1.6MPa Applicable Temperature: ≤120℃ Applicable Medium: Air, water, wastewater, steam, gas, oil, etc. Main Materials: Ductile iron, cast steel, alloy steel, stainless steel Actuation Methods: Manual, worm gear, pneumatic, electric Standards: Design Standards: GOST 12238-1989, ISO 10631-1994, BS EN 593-1998 Flange Connection Dimensions: GOST 17241.6-1998, ISO 7005-2, BS EN 1092-2002 Face-to-Face Length: GOST 12221-1989, ISO 5752-1988, BS EN 558-1 Application & Features The wafer-type soft-seal butterfly valve is suitable for regulating and isolating media in water supply, gas pipelines, and industries such as food, pharmaceuticals, chemicals, petroleum, power, metallurgy, municipal construction, textiles, and paper manufacturing. It operates at temperatures ≤120℃ and nominal pressures ≤1.6MPa. Key Features: Innovative and reasonable design with a unique structure, lightweight, and quick operation. Low operating torque for easy and efficient handling. Can be installed in any position and is easy to maintain. Replaceable sealing components with reliable bi-directional zero-leakage sealing. Sealing materials are resistant to aging and corrosion, ensuring a long service life.
View Product
Model: HH47, H47XF, HDH47X Nominal Pressure: PN1.0–2.5MPa Nominal Diameter: DN40–1000mm Closing Time: 3–60 seconds Applicable Medium: Clean water, wastewater, seawater Applicable Temperature: 0–80℃ (can be extended to 200℃ if required) Flange Standards: GOST 17241.6, GOST 9113 Product Overview The slow-closing check valve is mainly used at the pump outlet in industrial water supply and wastewater treatment plants to prevent backflow in pipelines. It automatically eliminates destructive water hammer, protecting pumps and pipelines from damage. Features: Innovative structure, compact size, and low fluid resistance Smooth operation with reliable sealing and wear resistance Effective buffering performance for enhanced system protection Composed of a valve body, valve disc, buffering device, and micro-adjustment valve Ideal for industrial water and municipal sewage applications
View Product
J41N Liquefied Gas Globe Valve Nominal Diameter (DN): 15–200mm Nominal Pressure (PN): 1.6–4.0MPa Main Materials: Stainless Steel, Carbon Steel Applicable Medium: Liquefied Gas, Natural Gas Applicable Temperature: -40℃ to +80℃ Flange Connection Standard: GOST 79-94 Main Component Materials Component Material Body Carbon Steel Stem & Disc Stainless Steel Sealing Surface Stainless Steel & 101 Nylon Packing PTFE (Polytetrafluoroethylene) Performance Parameters Nominal Pressure (PN) JIS10K JIS20K MPa Shell Test Pressure 2.4 3.75 6.0 High-Pressure Sealing Test 1.76 2.75 4.4 Main Dimensions PN DN L H D D1 D2 b f Z-φd D0 1.6MPa 15 130 207 95 65 45 16 2 4-14 120 20 150 217 105 75 55 16 2 4-14 140 25 160 219 115 85 65 16 2 4-14 160 32 190 280 135 100 78 18 2 4-18 180 2.5MPa 40 200 330 145 110 85 18 3 4-18 200 4.0MPa 50 230 350 160 125 100 20 3 4-18 240 10K 65 290 400 180 145 120 22 3 8-18 280 20K 80 310 430 195 160 135 22 3 8-18 320 100 350 465 230 190 160 24 3 8-23 360 125 400 502 270 220 188 28 3 8-25 400 150 480 560 300 250 218 30 3 8-25 440 200 600 580 360 310 278 34 4 12-25 480
View Product
Standard: Complies with GOST 5762-2002 / GOST 969-91 Nominal Diameter (DN): Ranges from 15mm to 500mm Nominal Pressure (PN): Typically PN10, PN16, PN25, PN40 Material: Cast iron, carbon steel, stainless steel, or brass Connection Type: Flanged (per GOST 12815-80) or threaded (GOST 6357-81) Working Medium: Water, steam, oil, gas, and other non-aggressive fluids Temperature Range: -40°C to +450°C (varies by material)
View Product
Standard: GOST 5762-2002 / GOST 969-91 Size Range (DN): 15mm – 500mm Pressure Rating (PN): PN10, PN16, PN25, PN40 Body Material: Cast iron, carbon steel, stainless steel, brass End Connection: Flanged (GOST 12815-80) / Threaded (GOST 6357-81) Application: Water, steam, oil, gas, non-corrosive fluids Operating Temperature: -40°C to +450°C (depending on material)
View Product
Standard: Conforms to JIS B2071 / JIS B2081 Size Range (DN): 15mm – 600mm Pressure Rating (PN): JIS 5K, 10K, 16K, 20K, 30K Material: Cast iron, ductile iron, carbon steel, stainless steel, bronze End Connection: Flanged (JIS B2220) / Threaded / Welded Working Medium: Water, steam, oil, gas, and chemical fluids Temperature Range: -20°C to +425°C (depending on material sele
View Product
Standard: API 600 / ASME B16.34 / BS 6364 (Cryogenic Service) Nominal Diameter (DN): 15mm – 600mm Nominal Pressure (PN): Class 150, 300, 600, 900, 1500 Material: Stainless steel, cryogenic carbon steel, alloy steel End Connection: Flanged (ASME B16.5), Butt-welded (ASME B16.25) Working Medium: Liquefied Natural Gas (LNG), cryogenic fluids Temperature Range: -196°C to +80°C
View Product
Located in Weifang-the world famous Capital of Kites, Shandong Hugong Valve Manufacturing Co., Ltd. is specialized in the R&D, manufacturing, sales, and service of modern professional valves as well as one of the most popular suppliers of gate valve, globe valve, butterfly valve, ball valve, check valve, control valve, relief valve, diaphragm valve, plug valve, plunger valve, drain valve, power station valve, hydraulic control valve and american standard valve.
With technological progress as the core and equipment as the carrier, we have always been committed to providing a complete set of intelligent processing solutions for global customers.
The product has been widely used in major projects in the domestic petroleum industry.
The product has been widely used in major projects in the domestic Chemical industry. The stability of delivery time, quality, and performance has brought high economic benefits to the project
The product has been widely used in major projects in the domestic Power industry.
Common themes in the tower industry: China's transmission towers generally use angle steel towers (about 20-70 meters high)
